Ties / Hardware / Accessories

The formwork accessories available through Forming America help your crew get the job done with speed, precision, and efficiency. These accessories often play a critical role on construction sites in combination with concrete formwork. When the right ties, bolts, clamps, and brackets are not readily available, your crew has to improvise. However, improvisation can be risky and has the potential to compromise safety, delay job completion, increase costs, and result in poorly executed projects.

Forming America supplies the high quality products your crew needs to have at the ready in order to complete a wall forming project quickly and safely. These hardware products and accessories are engineered for compatibility with the concrete forming systems the construction industry relies on every day. Rigorous testing ensures optimal performance at an affordable budget.

Ties

Formwork Accessories HD Loop Panel Ties | Forming America

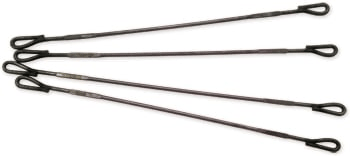

HD Loop Panel Ties

HD Loop Panel Ties are designed for securing and spacing modular type forms.  Standard units are fabricated with 2-1/8″ ends and 1″ breakback.  Other breakbacks, plastic cones or water resistant washers are available on special order.

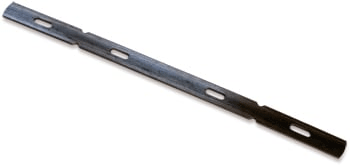

X Flat Ties

X Flat Ties are used with Wedge Bolts to secure and space modular forms.  X Flat ties are available in 6″ up to 84″ in 1/2″ increments. Standard breakback is 1/4″.

Formwork Accessories X Flat Ties | Forming America

Formwork Accessories Base Tie | Forming America

Base Ties

Base Ties are used at the base and/or top of modular type formwork.  Standard base ties are furnished without cones or breakback.

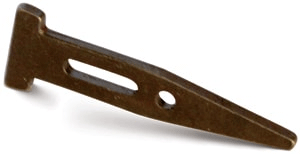

Wedge Bolts

Wedge Bolts are used with Loop Panel Ties, Plylags, X Flat ties etc., to secure modular type forms. Long Bolts and Short Bolts are also available.

Formwork Accessories Wedge Bolt | Forming America

Formwork Accessories One Piece Waler Clamp | Forming America

One Piece Waler Clamps

One Piece Waler Clamps attach through the wedge bolt slot of modular type forms to provide wedge action aligning with single or double lumber.

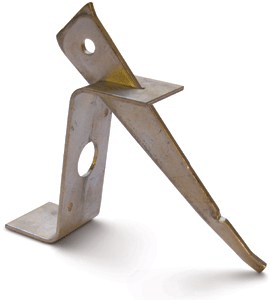

Z Tie Holders & Waler Ties

Z Tie Holders are used in conjunction with Waler Ties to secure double 2x lumber wales to modular type forms.  The Waler Tie is available in two sizes to accommodate 2 x 4 and 2 x 6 lumber.

Formwork Accessories Z Tie Holder | Forming America

Formwork Accessories J Strongback Ties | Forming America

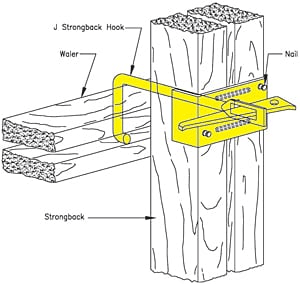

J-Strongback Hooks &

Strongback Ties

J-Strongback Hooks simply hook over one member of the waler and secure the vertical strongback lumber.  Strongback Loop Ties are long-ended loop ties used in conjunction with the Z Tie Holder.  When Strongback Ties are used in conjunction with lumber walers and strongbacks, the Strongback Tie can eliminate the need for a Waler Tie at that point.


Brackets and Aligners

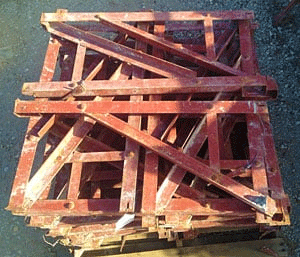

Scaffold Brackets

Scaffold Brackets should be installed where one or more levels of work platforms are required for personnel safety whenever access to forming components or concrete placement necessitates work above grade or deck levels.

Formwork Accessories Scaffold Brackets | Forming America

Formwork Accessories Turnbuckles | Forming America

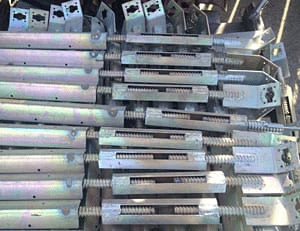

Turnbuckles

Turnbuckle Form Aligners are designed to accurately position and plumb vertical forms.
The turnbuckle section of the aligner features a 1″ diameter self-cleaning coil thread for fast adjustments.  Overall length of the aligner is 37″ minimum and 40″ maximum, offering 3″ of effective adjustment.

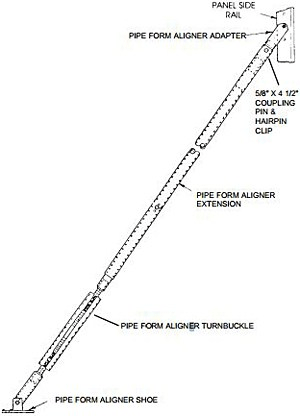

Pipe Form Aligners

Pipe Form Aligners are adjustable from 11′-7″ up to 20′-9″ and connects to side rails by utilizing the Steel-Ply Pipe Form Aligner adapter at the Wedge Bolt slot midway between cross members.

Formwork Accessories Pipe Form Aligner | Forming America



Concrete Formwork Accessories from Forming America

Forming America is dedicated to helping you secure the right ties, hardware and accessories for your concrete forming project. Our experienced team is available to answer any of your questions. We’ll consider the scope of your project and help you identify the ideal equipment for the job at hand.

Forming America’s full range of concrete forming accessories can be conveniently shipped to your location or job site to save you valuable time. Contact us or call 1-888-993-1304 for both pricing and availability for your next formwork project.
